10.1 инчен FHD LVDS TFT модул

As the TFT Module is widely used in life, manufacturers and suppliers are increasingly. What makes the Victronix 10.1 inch FHD LVDS TFT Module different from other manufacturers? At first, its 300 cd/m² typical brightness, 800:1 contrast ratio, and 80° wide viewing angles (all directions) ensure readability in varied environments. Secondly, it not only supports an LVDS signal with configurable 6/8-bit input via SEL68 pin, plus OTP (One-Time Programmable) functionality for customization but also features 1920×(RGB)×1200 resolution with 16.7 million colors, delivering sharp imagery across a 216.91×135.5 mm active area. Besides, it passes rigorous environmental stress tests (thermal shock, humidity, drop resistance) to operate reliably in extreme temperatures (-20°C to +70°C).

This Victronix 10.1 inch TFT Module is suitable for Industrial HMIs, medical devices, outdoor control systems, and embedded solutions requiring consistent performance under harsh conditions.

General Specifications

VXT101MBFH-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light and a CTP unit . The 10.1 display area contains 1920x (RGB) x 1200 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.

Note 1: Color tune is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder.

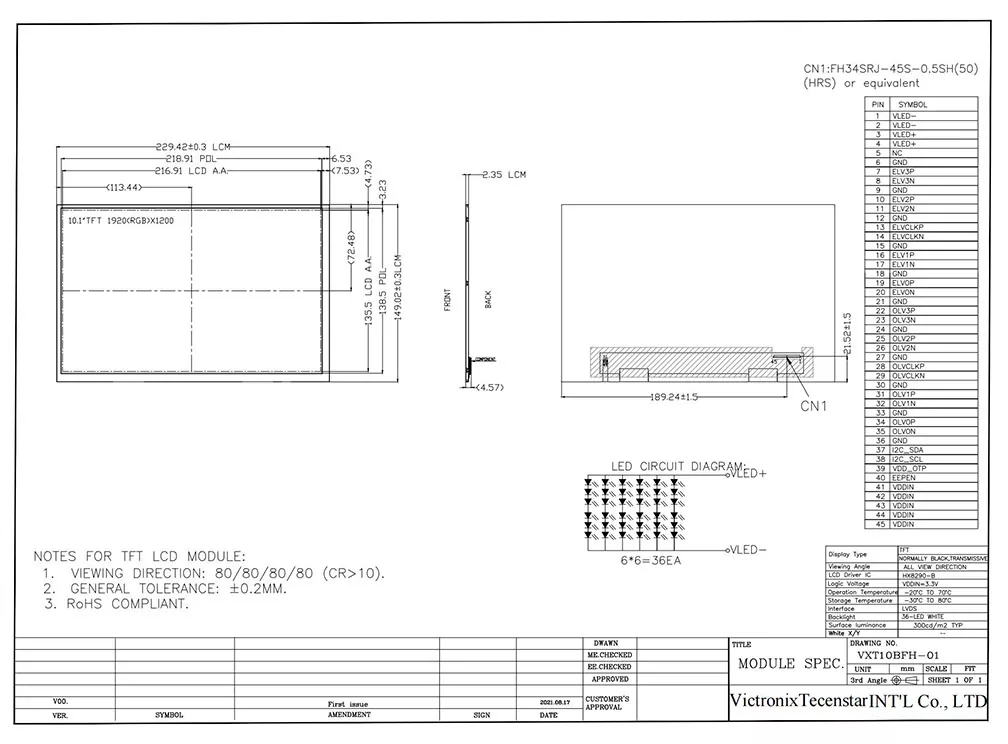

Mechanical Drawing
